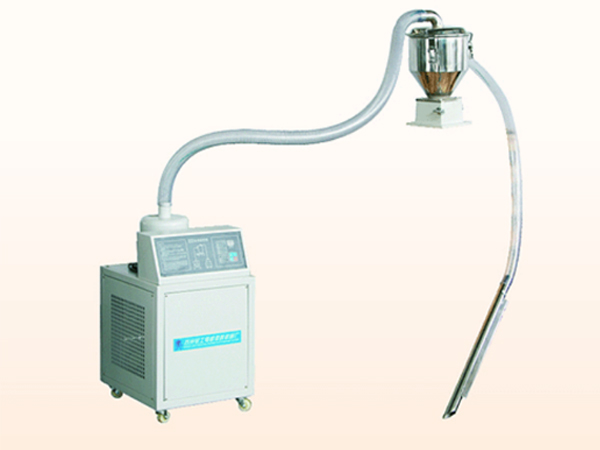

Transmitting granular plastic raw materials from the material storage tank to any kind of hopper of plastic processing machinery automatically, during the transmission process the raw materials are completely free of dampness and contamination without bringing any foreign objects. it can replaces artificial feeding completely to make sure production process fully closed automation, which is safe and reliable.
Principle
XSQ type suction feeder adopts XGB vortex air pump for air exhaust to make the suction inlet and the whole system stay in a certain vacuum state; raw materials along with the outside air are sucked in suction nozzle to form material airflow, and reach the hopper through suction tube, and then material and gas separation is carried out in the hopper.
| Model | Operational throughout | Power | Voltage | Inner Dia.Of material suction tube | Inner Dia. Of air suction tube | Noise | Hopper Volume | Hopper Size | Control Cabinet Size | Weight |
| kg/h | kw | v | mm | mm | dB(A) | L | mm | mm | kg | |
| XSQ-10 | 240 | 1.1 | 380 | Ø40 | Ø50 | 74 | 10 | Ø280*510 | 600*400*750 | 50 |
| XSQ-15 | 450 | 1.5 | 380 | Ø40 | Ø50 | 80 | 15 | Ø280*560 | 600*400*750 | 58 |
| XSQ-20 | 600 | 2.2 | 380 | Ø40 | Ø50 | 82 | 20 | Ø280*660 | 700*450*820 | 77 |
| XSQ-30 | 1000 | 3.0 | 380 | Ø40 | Ø50 | 84 | 30 | Ø280*760 | 700*450*820 | 90 |
Remark:
Conveying conditions of the above parameters: the height is three meters and the total distance is four meters. 2*3 mm cylindrical nylon or ABS granules
