Y2EJ Brake Motor

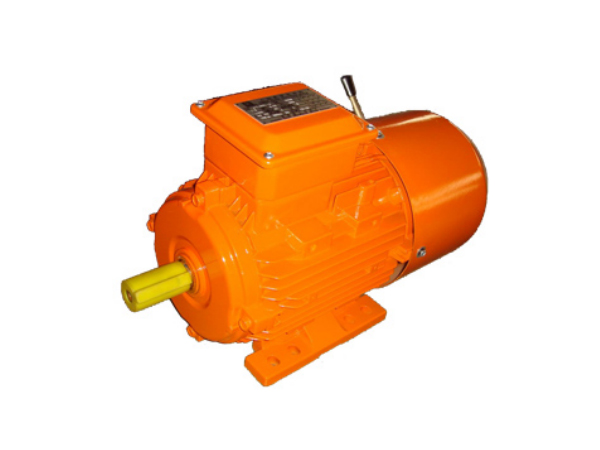

Y2EJ Series Three Phase Cast Iron Brake Motors

SEND EMAIL TO US

Product Detail
TECHNICAL DATA
MOUNTING DIMENSIONS

Y2EJ series electric motors (center height H63-22 mm, 0.12kw - 45kw) are designed for Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 And meets energy- using products and amending Council Directive 92/42/EEC and Directives 96/57/EC and 2000/55/EC of the European Parliament and of the Council, Commission regulation (EC) No 640/2009 of 22 July 2009.

Type	Rated Power	Current (A)				Rated Speed	P.F.	Eff.	Static Braking Torque	No-load Braking Time	Energizing Power	Ist/In	Tst/Tn	Tmax/Tn	Wt.
Type	Kw	400V	690V	415V	720V	R/min	Cosφ	%	(NM)	(S)	(W)	Ist/In	Tst/Tn	Tmax/Tn	Kg
50HZ Synchronous Speed 1000 r/min (6 Poles)
Y2EJ711-6	0.18	0.56	0.32	0.54	0.18	850	0.68	68.6	4	0.2	18	4	1.9	2	16
Y2EJ712-6	0.25	0.77	0.45	0.75	0.25	850	0.68	68.6	4	0.2	18	4	1.9	2	17
Y2EJ801-6	0.37	1.04	0.60	1.00	0.33	885	0.7	73.5	7.5	0.2	30	4.7	1.9	2.0	18
Y2EJ802-6	0.55	1.43	0.83	1.38	0.46	885	0.72	77.2	7.5	0.2	30	4.7	1.9	2.1	19
Y2EJ90S-6	0.75	1.91	1.10	1.84	0.61	910	0.72	78.9	15	0.2	50	5.5	2.0	2.1	26
Y2EJ90L-6	1.1	2.69	1.56	2.59	0.86	910	0.73	81.0	15	0.2	50	5.5	2.0	2.1	28
Y2EJ100L-6	1.5	3.50	2.03	3.37	1.13	920	0.75	82.5	30	0.2	65	5.5	2.0	2.1	37
Y2EJ112M-6	2.2	4.96	2.87	4.78	1.60	935	0.76	84.3	40	0.25	90	6.5	2.0	2.1	44
Y2EJ132S-6	3	6.66	3.86	6.42	2.14	960	0.76	85.6	75	0.25	90	6.5	2.1	2.1	68
Y2EJ132M1-6	4	8.75	5.07	8.44	2.82	960	0.76	86.8	75	0.25	90	6.5	2.1	2.1	79
Y2EJ132M2-6	5.5	11.7	6.79	11.3	3.77	960	0.77	88.0	75	0.25	90	6.5	2.1	2.1	87
Y2EJ160M-6	7.5	15.8	9.15	15.2	5.08	970	0.77	89.1	150	0.35	150	6.5	2.0	2.1	122
Y2EJ160L-6	11	22.5	13.1	21.7	7.26	970	0.78	90.3	150	0.35	150	6.5	2.0	2.1	141
Y2EJ180L-6	15	29.3	17.0	28.2	9.44	970	0.81	91.2	200	0.35	150	7.0	2.1	2.2	181
Y2EJ200L1-6	18.5	36.0	20.8	34.7	11.6	970	0.81	91.7	300	0.45	200	6.5	2.1	2.8	227
Y2EJ200L2-6	22	41.5	24.1	40.0	13.4	970	0.83	92.2	300	0.45	200	6.5	2.1	2.7	236
Y2EJ225M-6	30	55.5	32.2	53.5	17.9	980	0.84	92.9	450	0.45	200	5.9	2.1	2.5	302

50HZ Synchronous Speed 750 r/min (8 Poles)
Y2EJ801-8	0.18	0.73	0.42	0.70	0.23	645	0.61	58.7	7.5	0.2	30	3.3	1.8	1.9	19
Y2EJ802-8	0.25	0.92	0.54	0.89	0.30	645	0.61	64.1	7.5	0.2	30	3.3	1.8	1.9	19
Y2EJ90S-8	0.37	1.26	0.73	1.22	0.41	670	0.61	69.3	15	0.2	50	4	1.8	1.9	23
Y2EJ90L-8	0.55	1.78	1.03	1.72	0.57	670	0.61	73.0	15	0.2	50	4.0	1.8	2.0	25
Y2EJ100L1-8	0.75	2.15	1.25	2.08	0.69	680	0.67	75.0	30	0.2	65	4.0	1.8	2.0	32
Y2EJ100L2-8	1.1	2.96	1.72	2.85	0.95	680	0.69	77.7	30	0.2	65	5.0	1.8	2.0	35
Y2EJ112M-8	1.5	3.94	2.28	3.79	1.27	690	0.69	79.7	40	0.25	90	5.0	1.8	2.0	39
Y2EJ132S-8	2.2	5.46	3.17	5.26	1.76	705	0.71	81.9	75	0.25	90	6.0	1.8	2.0	79
Y2EJ132M-8	3	7.10	4.12	6.85	2.29	705	0.73	83.5	75	0.25	90	6.0	1.8	2.0	87
Y2EJ160M1-8	4	9.33	5.41	8.99	3.00	720	0.73	84.8	150	0.35	150	6.0	1.9	2.0	116
Y2EJ160M2-8	5.5	12.4	7.21	12.0	4.01	720	0.74	86.2	150	0.35	150	6.0	2.0	2.0	130
Y2EJ160L-8	7.5	16.5	9.58	15.9	5.32	720	0.75	87.3	150	0.35	150	6.0	2.0	2.0	141
Y2EJ180L-8	11	23.6	13.7	22.7	7.59	730	0.76	88.6	200	0.35	150	6.2	2.2	2.8	181
Y2EJ200L1-8	15	31.8	18.4	30.6	10.2	730	0.76	89.6	300	0.45	200	6.2	2.2	2.8	230
Y2EJ200L2-8	18.5	39.0	22.6	37.6	12.6	730	0.76	90.1	300	0.45	200	6.8	2.0	3.0	240
Y2EJ225M-8	22	44.9	26.0	43.3	14.5	740	0.78	90.6	450	0.45	200	6.7	2.0	2.9	302

Related Products

YE3 Cast Iron Electric Motors

YE3 SERIES CAST IRON THREE PHASE ELECTRIC MOTORS

Y2X High Output Motors

Y2X SERIES LOW VOLTAGE HIGH OUTPUT ELECTRIC MOTORS

YG Roller Way Motor

YG SERIES ROLLER-WAY ELECTRIC MOTORS

B3 Size (mm)
Frame	Pole	Mounting Dimensions (mm)									Overall Dimensions (mm)
		A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
63M	2.4	100	80	40	11	23	4	8.5	63	7	135	130	70	180	285
71M	2.4.6	112	90	45	14	30	5	11	71		150	145	80	195	314
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	10	165	175	145	220	355
90S	2.4.6.8	140	100	56	24	50	8	20	90		180	195	155	250	381
90L	2.4.6.8		125												406
100L	2.4.6.8	160	140	63	28	60		24	100	12	205	215	180	270	439
112M	2.4.6.8	190		70					112		230	240	190	300	464
132S	2.4.6.8	216		89	38	80	10	33	132		270	275	210	345	542
132M	2.4.6.8		178												580
160M	2.4.6.8	254	210	108	42	110	12	37	160	15	320	330	255	420	720
160L	2.4.6.8		254												765
180M	2.4.6.8	279	241	121	48	110	14	42.5	180	15	355	380	280	455	810
180L	2.4.6.8		279
200L	2.4.6.8	318	305	133	55		16	49	200	19	395	420	305	545	890
225S	2.4.6.8	356	286	149	60	140	18	53	225		435	470	335	555	950
225M	2		311		55	110	16	49							945
225M	4.6.8				60	140	18	53							975

B5 Size(mm)
Frame	Pole	Flange	Mounting Dimensions(mm)						Overall Dimensions(mm)
			M	N	P1)	R2)	S	T	AC	AD	HF	L
63M	2.4	FF115	115	95	140	0	4-∮10	3	130	70	130	285
71M	2.4.6	FF130	130	110	160			3.5	145	80	145	314
80M	2.4.6.8	FF165	165	130	200		4-∮12		175	145	185	355
90S	2.4.6.8								195	155	195	381
90L	2.4.6.8											406
100L	2.4.6.8	FF215	215	180	250		4-∮15	4	215	180	245	439
112M	2.4.6.8								240	190	265	464
132S	2.4.6.8	FF265	265	230	300				275	210	315	542
132M	2.4.6.8											580
160M	2.4.6.8	FF300	300	250	350		4-∮19	5	330	255	385	720
160L	2.4.6.8											765
180M	2.4.6.8		300	250	350				380	280	430	810
180L	2.4.6.8										450	850
200L	2.4.6.8	FF350	350	300	400				420	305	545	890
225S	2.4.6.8	FF400	400	350	450		8-∮19		470	335	555	950
225M	2											945
225M	4.6.8											975

B14 Size(mm)
Frame	Flange	Mounting Dimensions(mm)						Overall Dimensions(mm)
Frame	Flange	M	N	P1)	R2)	S	T	AC	AD	HF	L
63M	FT75	75	60	90	0	M5	2.5	130	70	130	285
71M	FT85	85	70	105		M6	2.5	145	80	145	314
80M	FT100	100	80	120		M6	3	175	145	185	355
90S	FT115	115	95	140		M8		195	155	195	381
90L	FT115	115	95	140				195	155	195	406
100L	FT130	130	110	160			3.5	215	180	245	439
112M	FT130	130	110	160			3.5	240	190	265	464
